DMP-A6 Source Menu Introduction

Now, please follow the instructions below to explore the DMP-A6 input and output menu.

Source menu

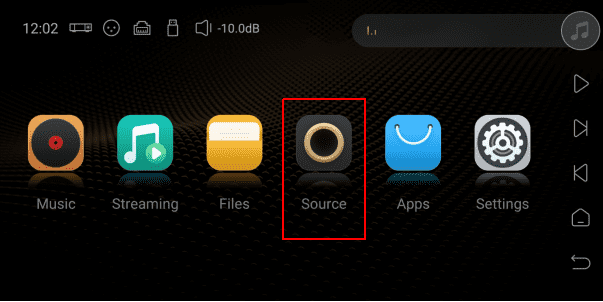

Click on “Source”on the main screen of DMP-A6. In the Source menu, the upper row is for input port options, and the lower row is for output port options.

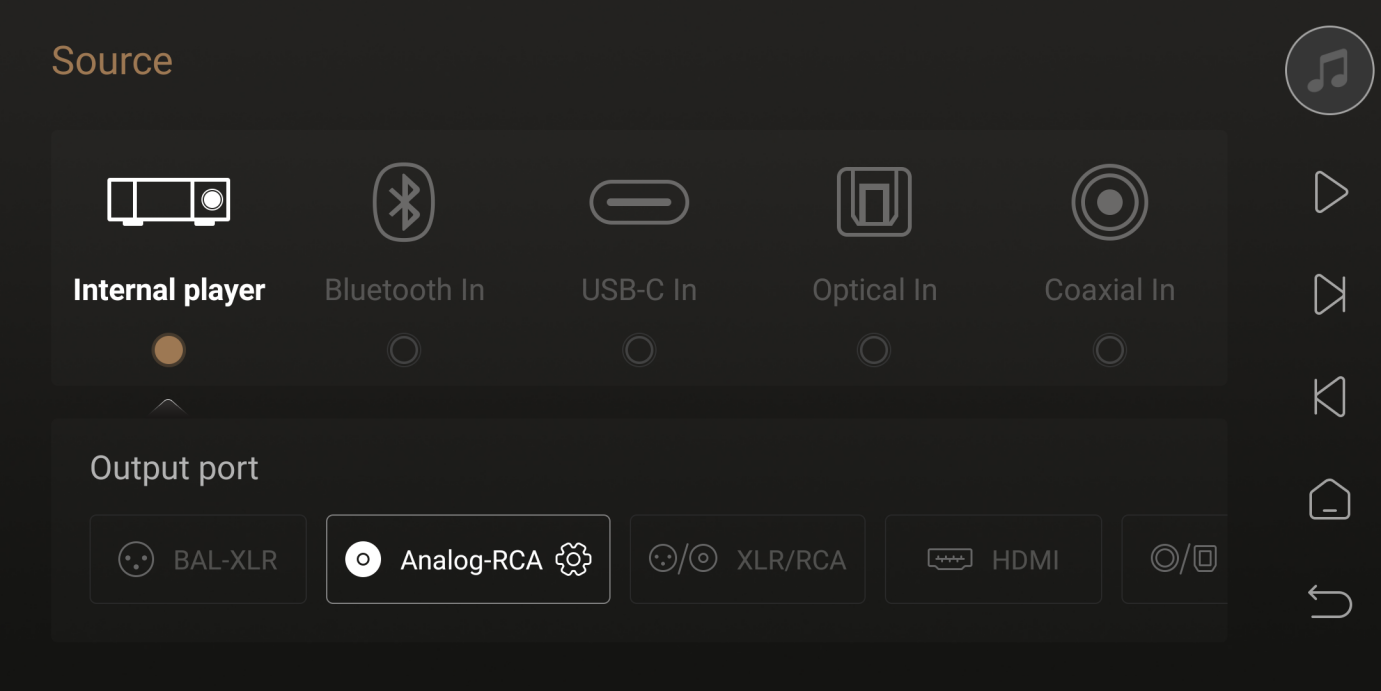

Internal player

Use the built-in DMP-A6 player to play music. This mode supports output through XLR, RCA, HDMI, optical/coaxial, and USB DAC ports.

Click on the corresponding output port gear icon to view the current output parameters.

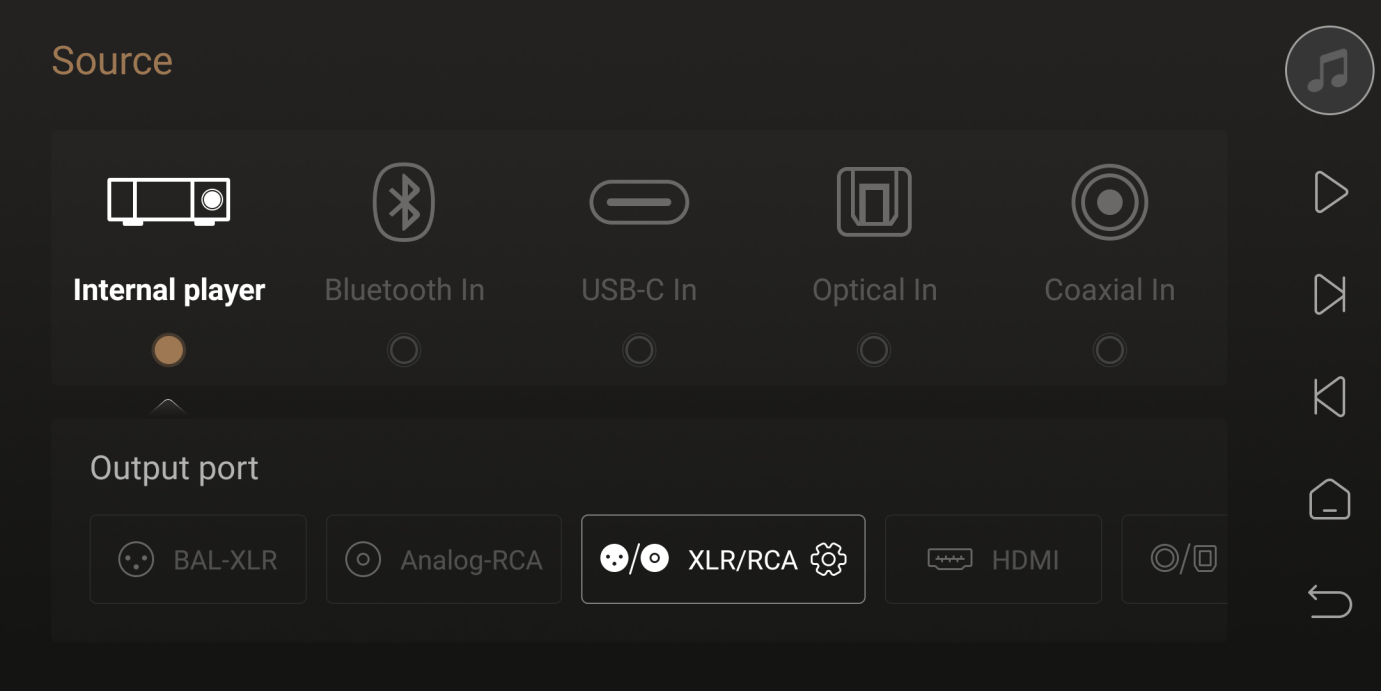

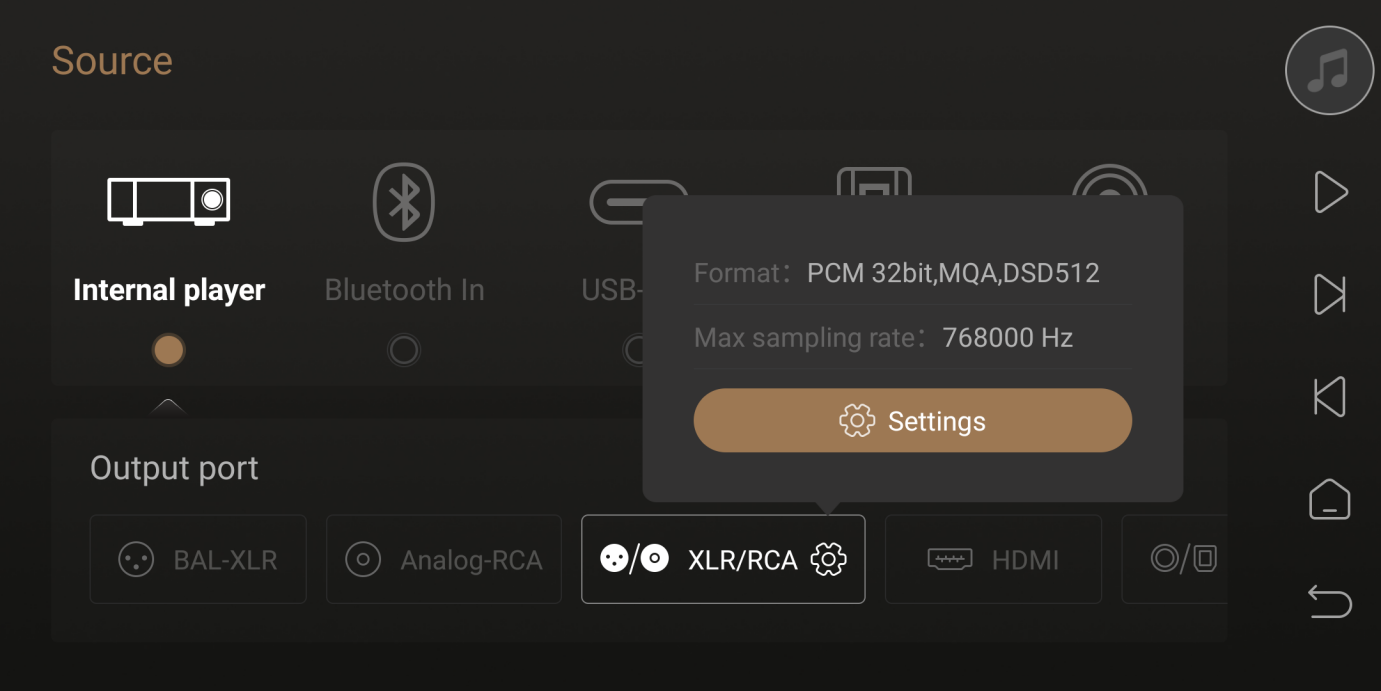

XLR/RCA output

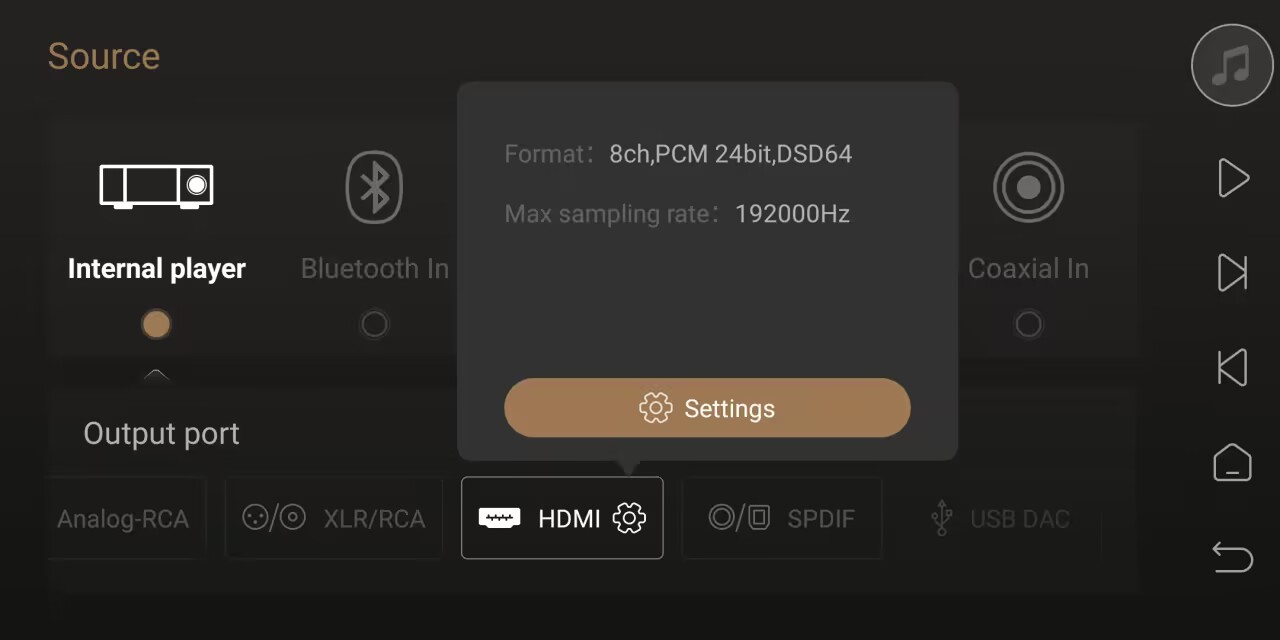

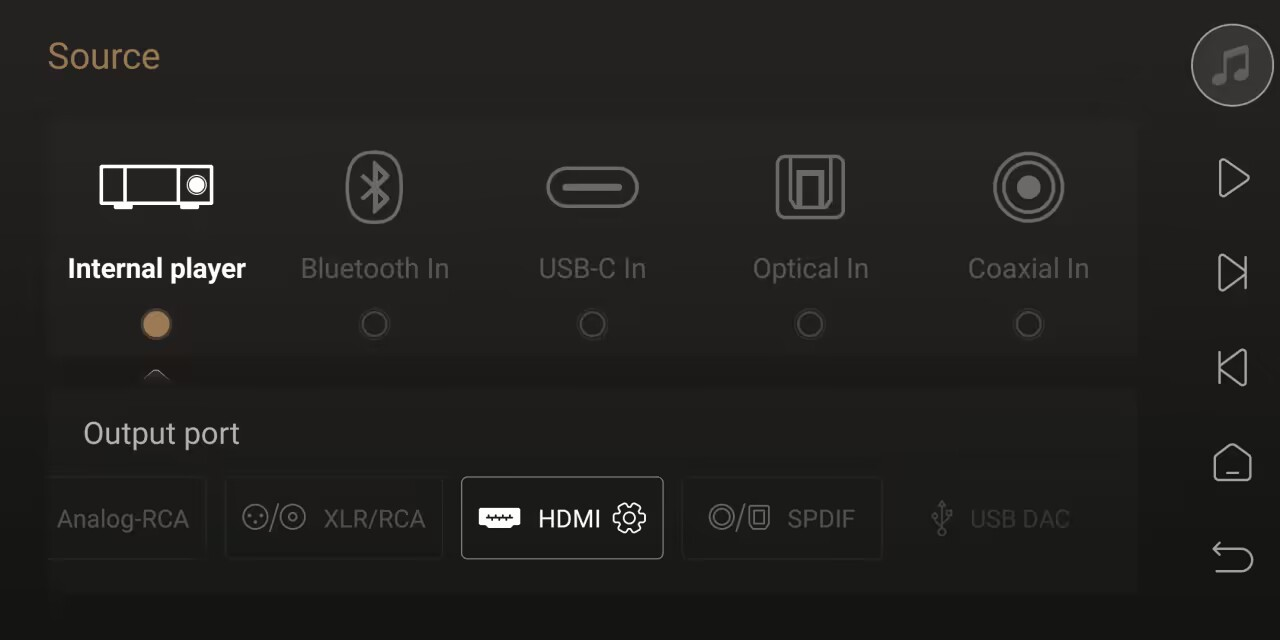

HDMI output: This port connects to a multi-channel AV amplifier and supports DSD64 Native multi-channel/PCM192KHz multi-channel source code output (up to 5.1 channels).

DMP-A6 will read the EDID of the backend decoding device and display the supported formats of the decoding device.

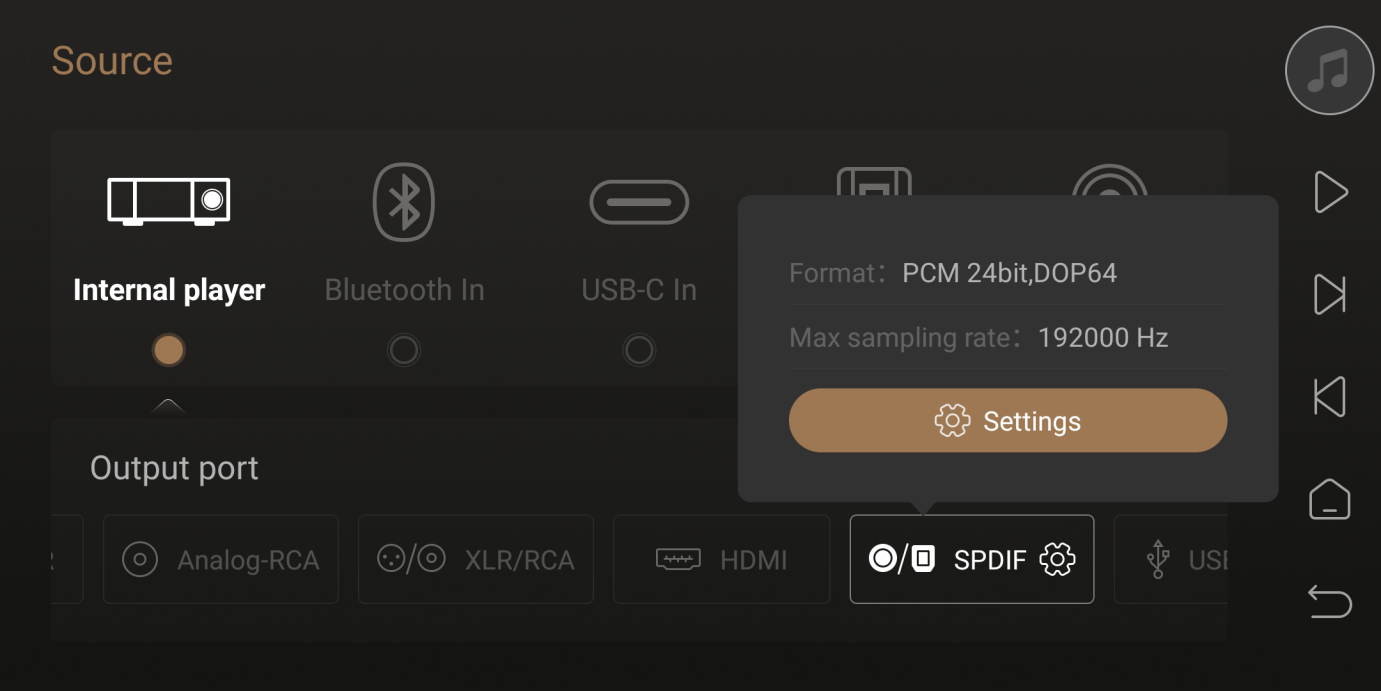

Optical/Coaxial Output (SPDIF port)

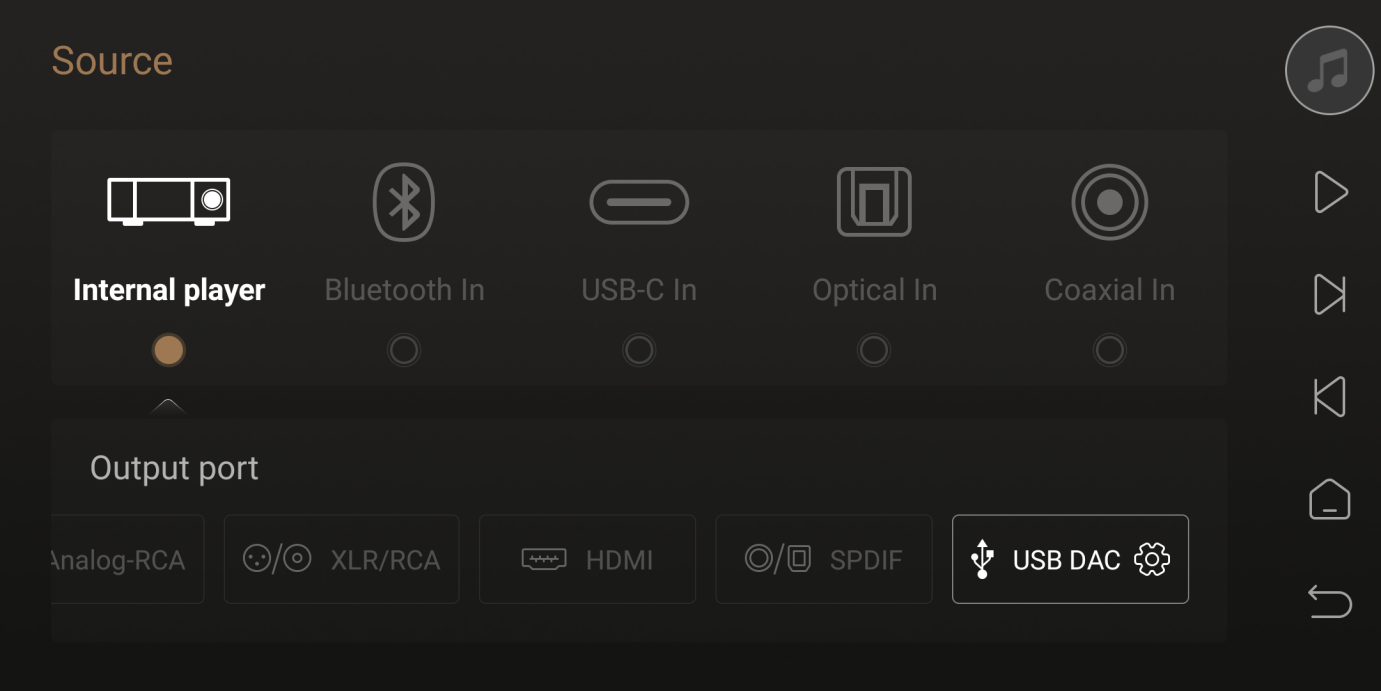

USB DAC output：To enable this option, A6 needs to be connected to a recognized external USB DAC. The output will adapt based on the capabilities of the external DAC decoder, supporting a maximum of DSD512 and PCM768KHz at 32-bit.

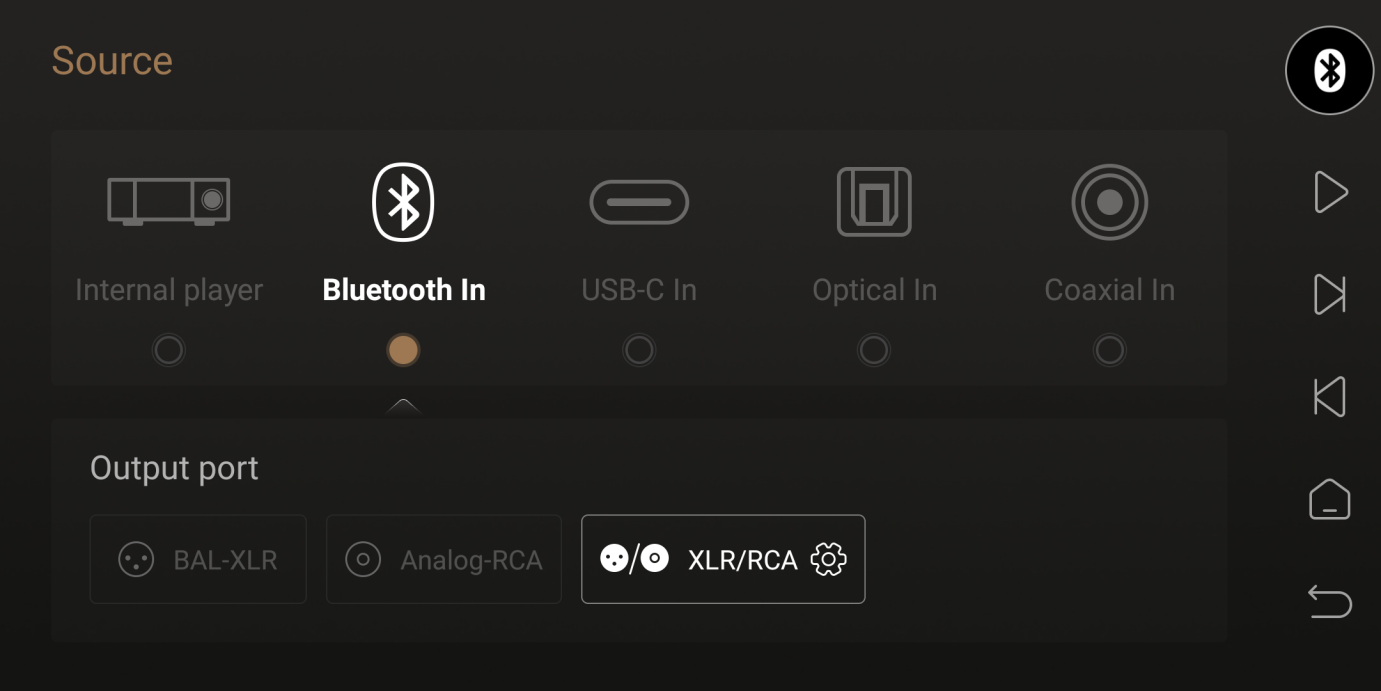

Bluetooth In

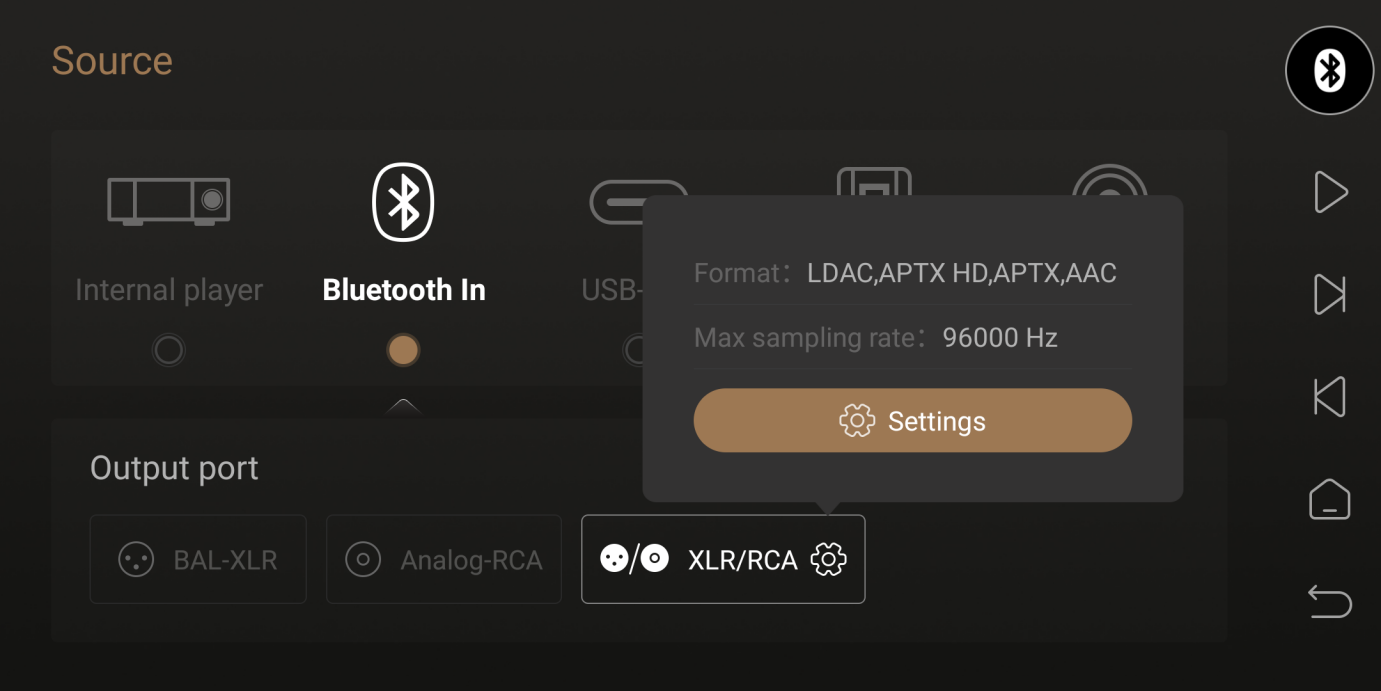

Bluetooth connection is available for Android and iOS devices. This mode supports only balanced XLR and RCA outputs. By clicking on the corresponding output port gear icon, you can view the current maximum output parameters for that port.

For example, when DMP-A6 is set to this mode, after pairing your phone's Bluetooth with the device, you can play songs that will be transmitted to DMP-A6 via Bluetooth.

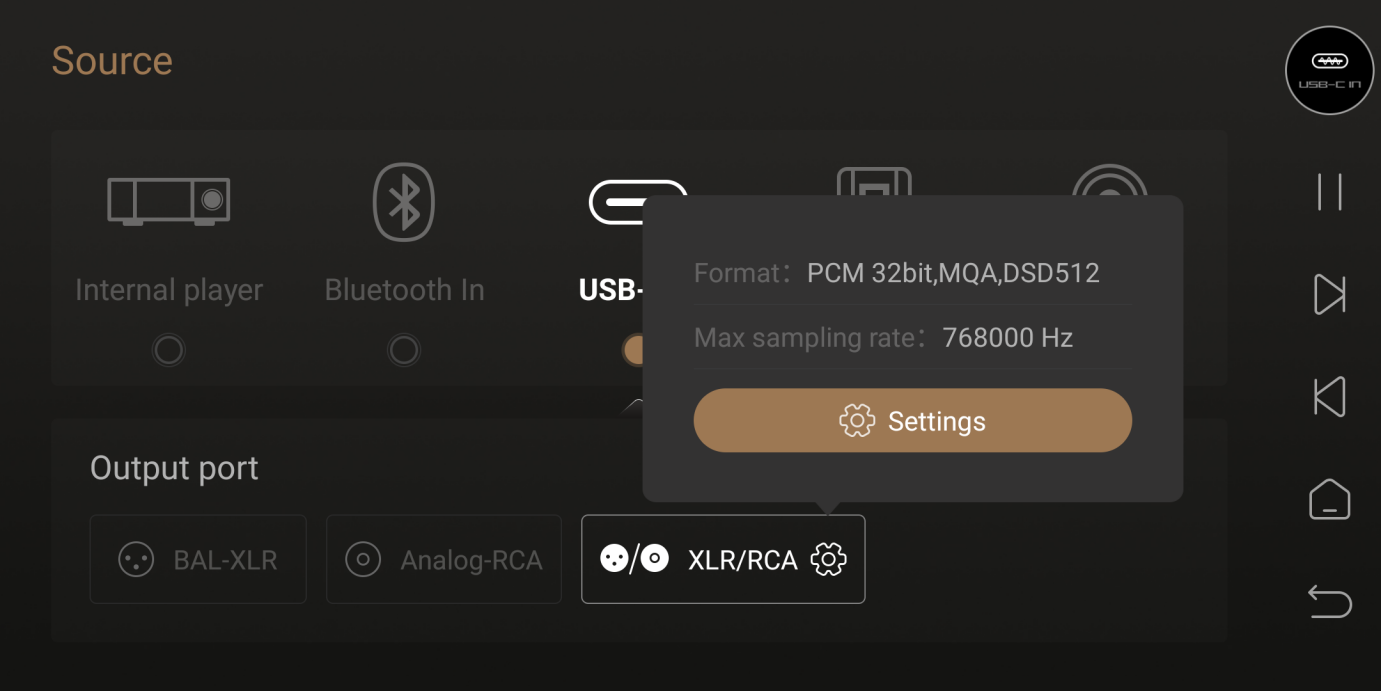

USB-C

This port can connect to PC, Android, and iOS devices. This mode only supports balanced XLR and RCA outputs. Click on the corresponding output port gear icon to view the current output parameters for this port.

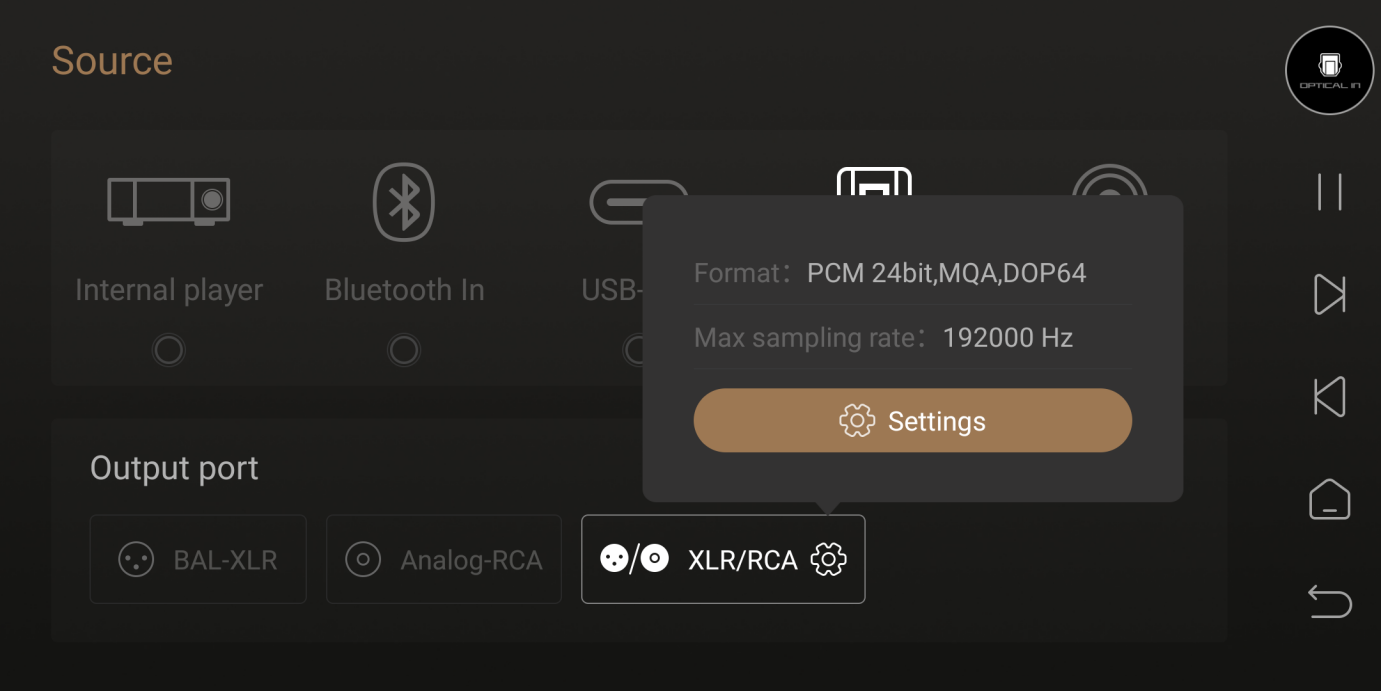

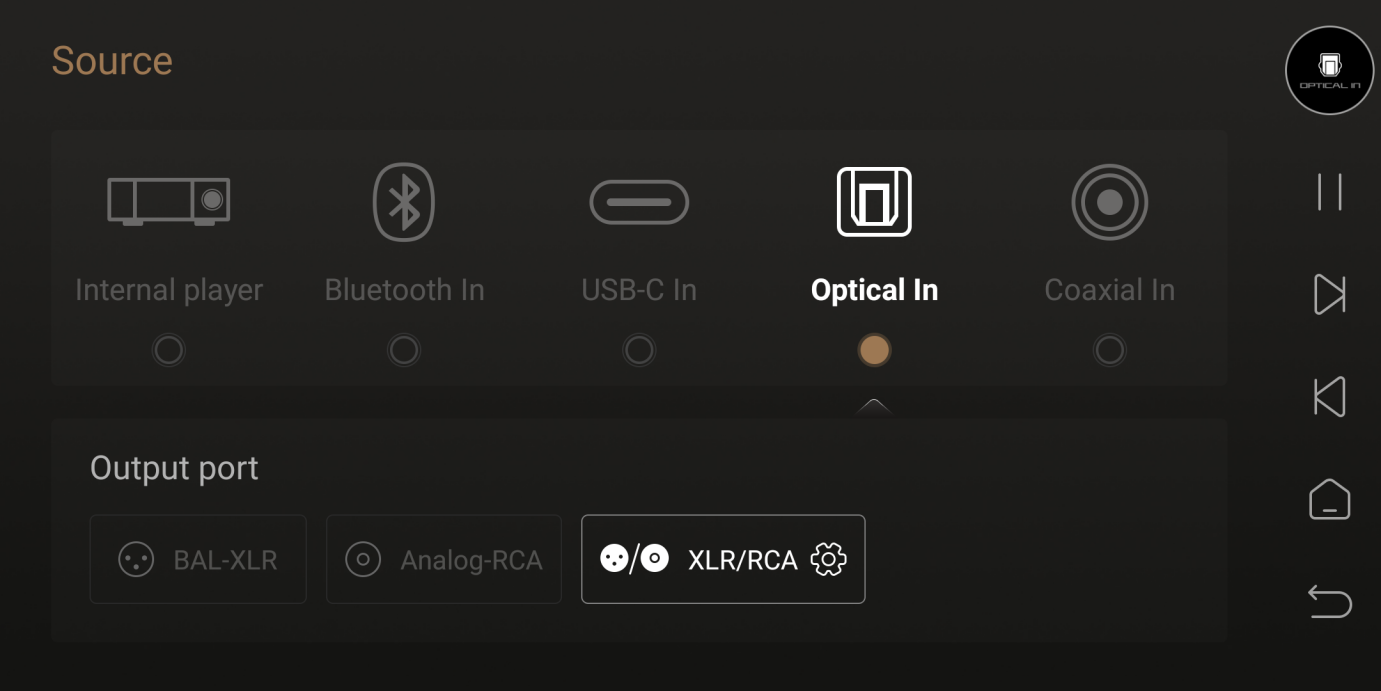

Optical/Coaxial Input

The digital dial device with optical/coaxial interfaces can be connected to this port. In this mode, only balanced and RCA outputs are supported. Click on the corresponding output port gear icon to view the current mode's highest output parameters for that port.
