Eversolo Streamer Music Connect User Guide
Eversolo Streamer Music Connect
User Guide
1. Preparations
Connect the streamer to the network via Ethernet or WiFi. Ensure your mobile device and the streamer are on the same local area network (LAN).

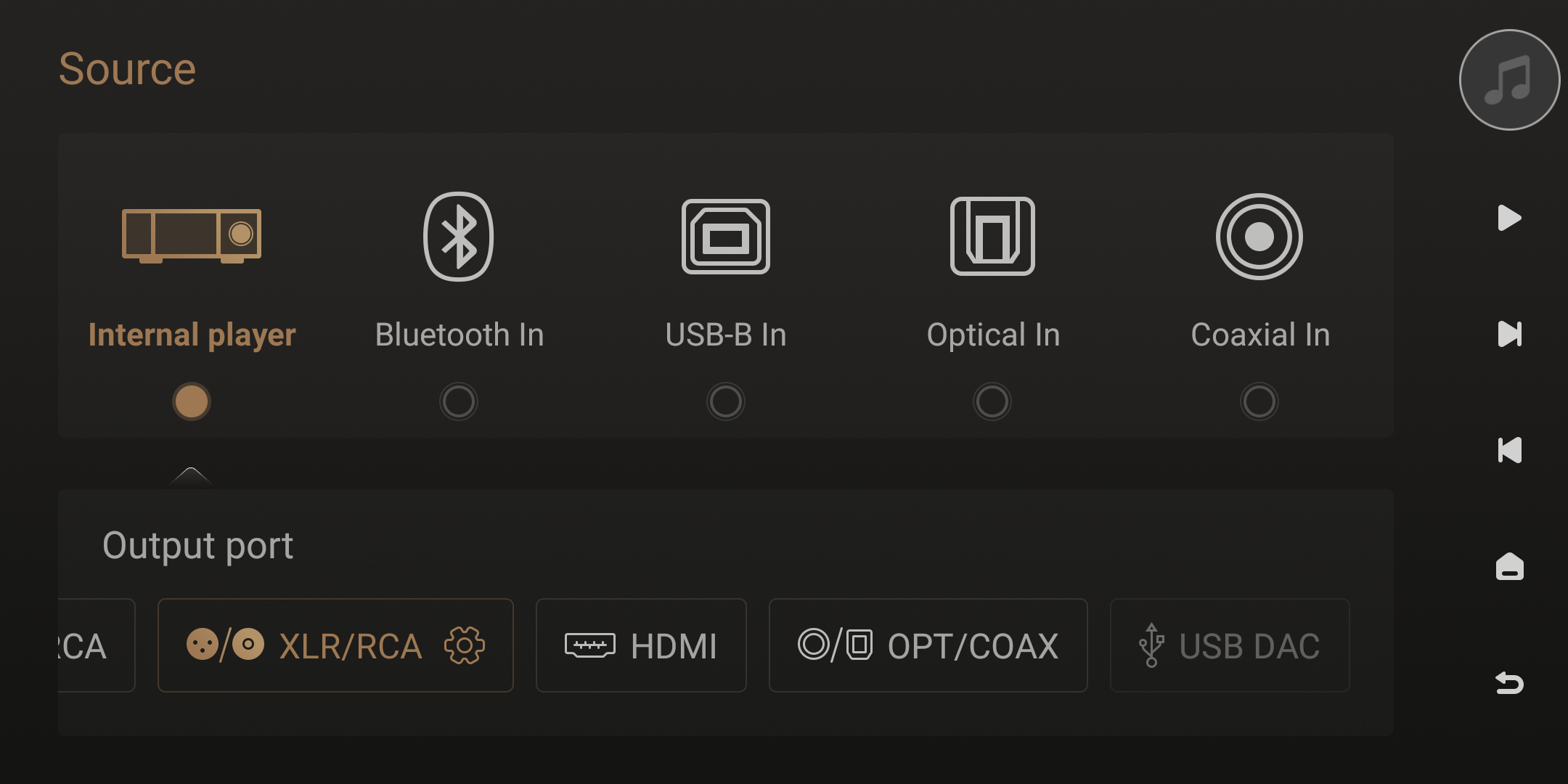

In the Source Menu:
Set the audio source to "Inter Player".
Configure the corresponding output port you need.
To activate DLNA or Squeeze Connect:
Navigate to "Streaming" → "Connect" in the streamer's system menu, and tap the service-specific icon to enable the protocol.
2. TIDAL Connect

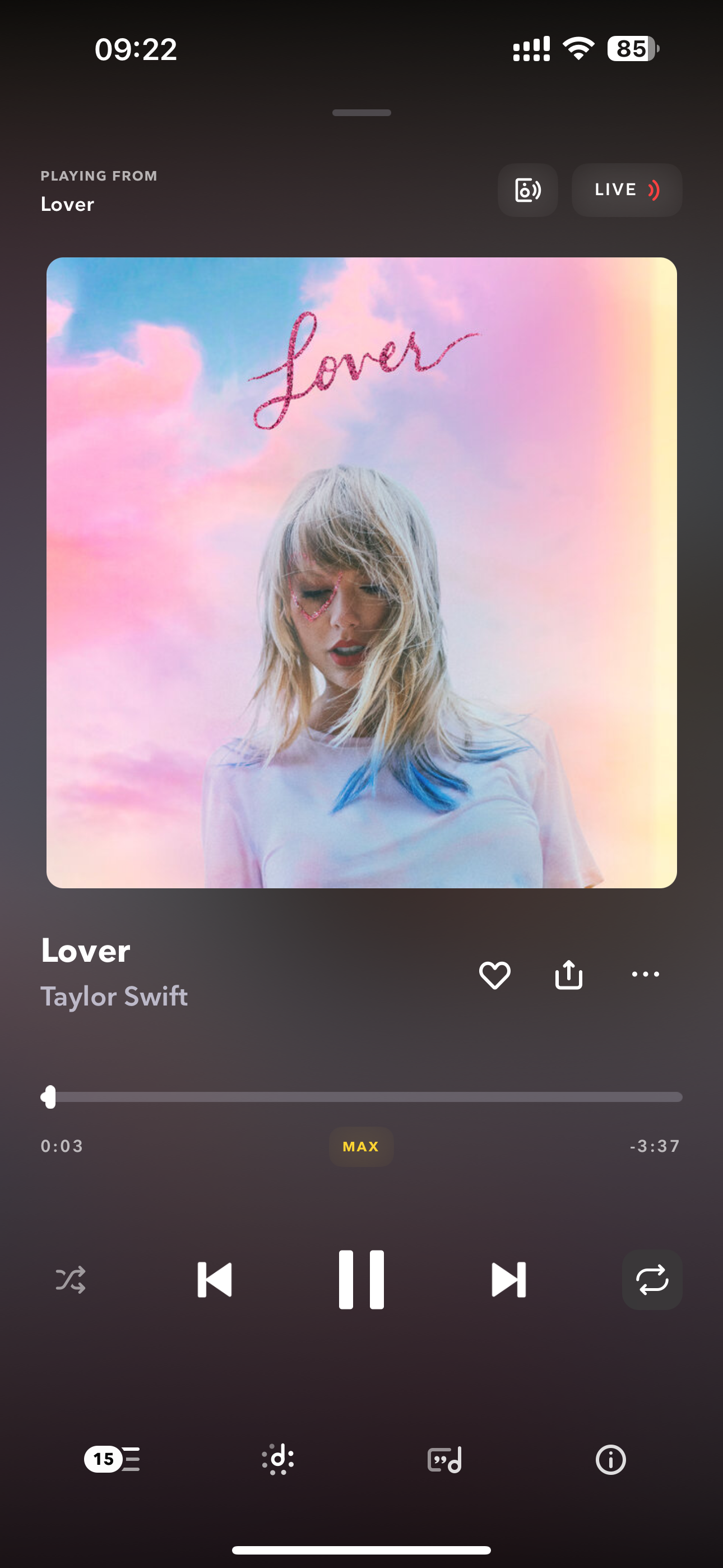

Launch the TIDAL app on your mobile device and open the playback screen of a track.
Tap the "

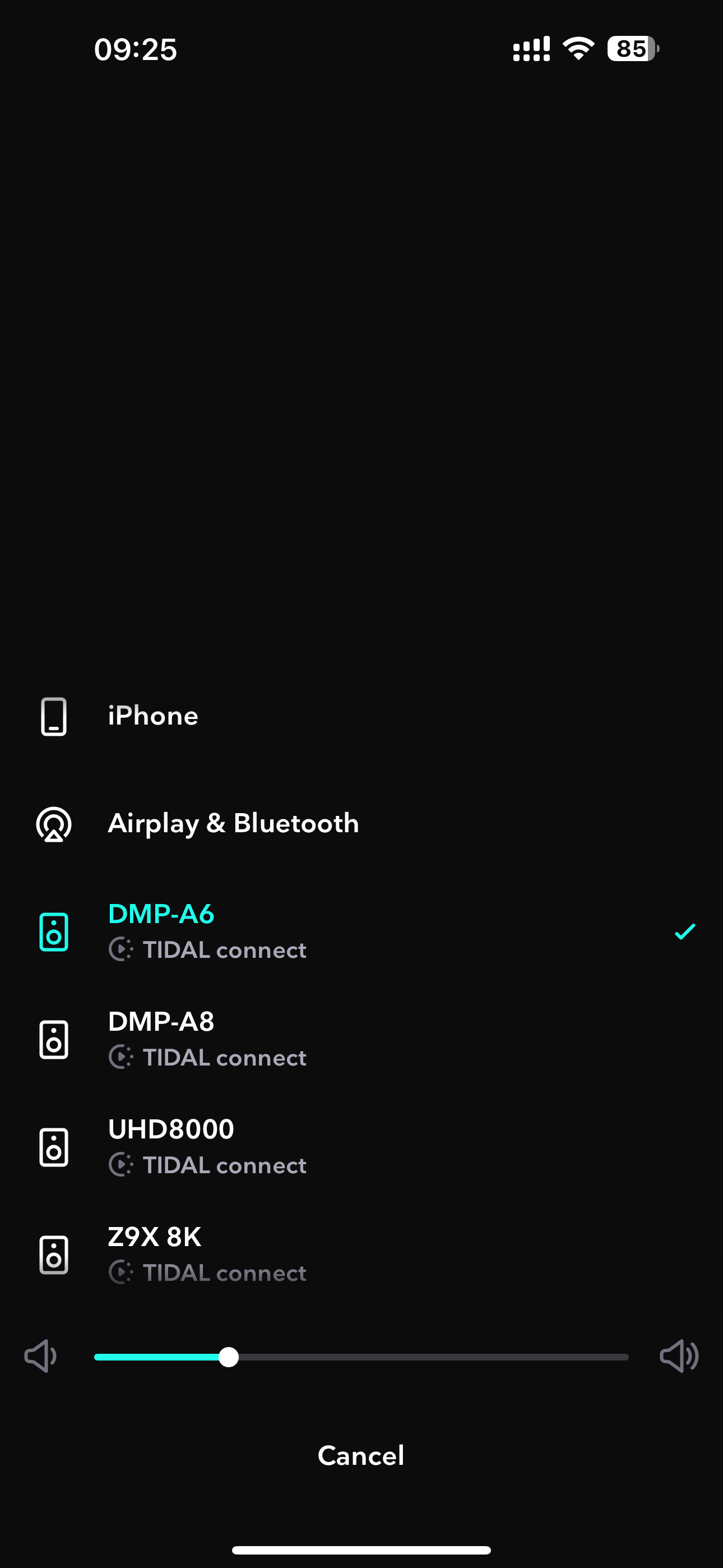

" icon (located at the top-right corner) to access the device list.
Select Eversolo streamer from the list. The audio will now stream to the device.

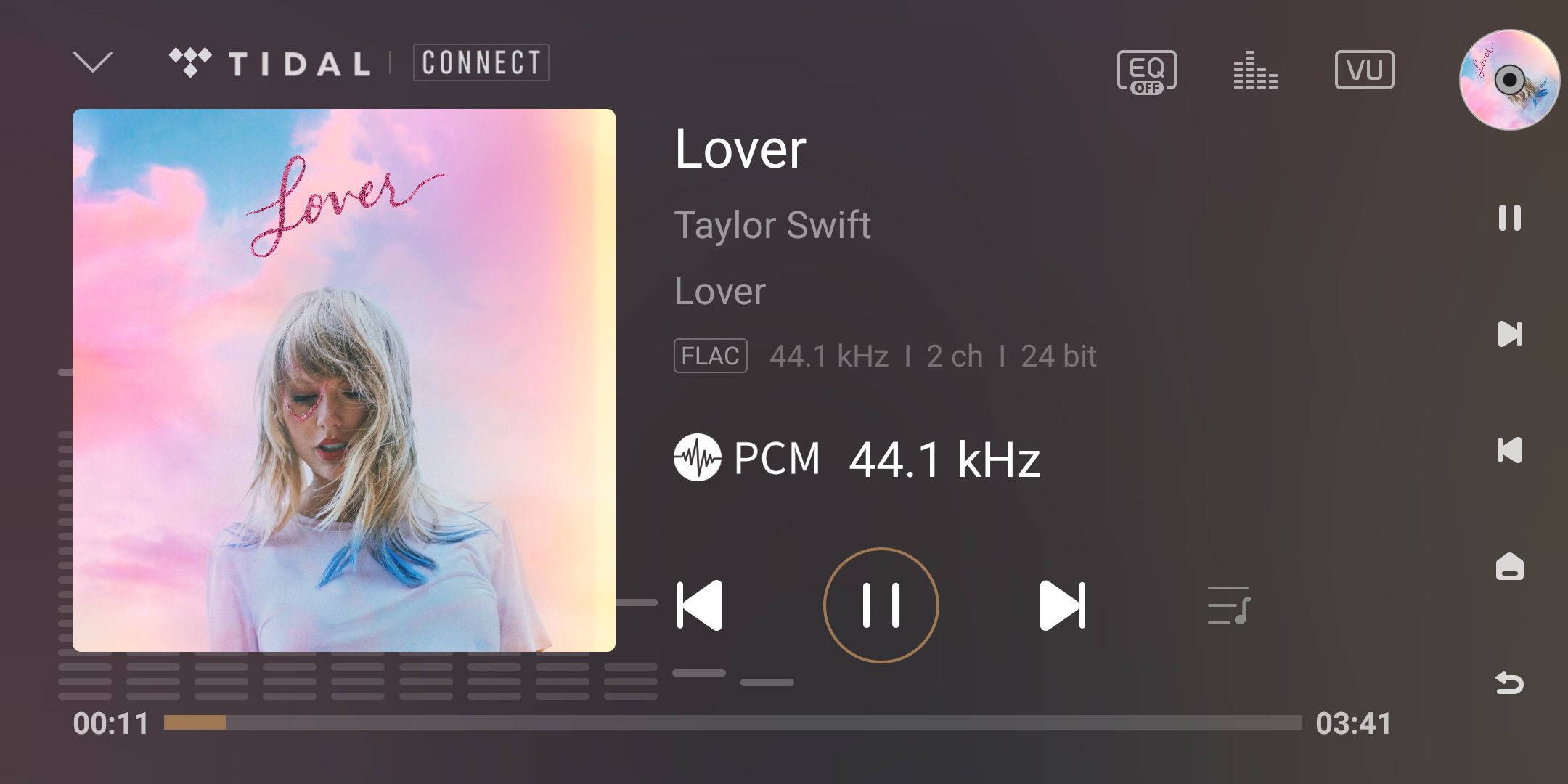

The streamer's playback information interface will display real-time metadata.
3. Roon Ready

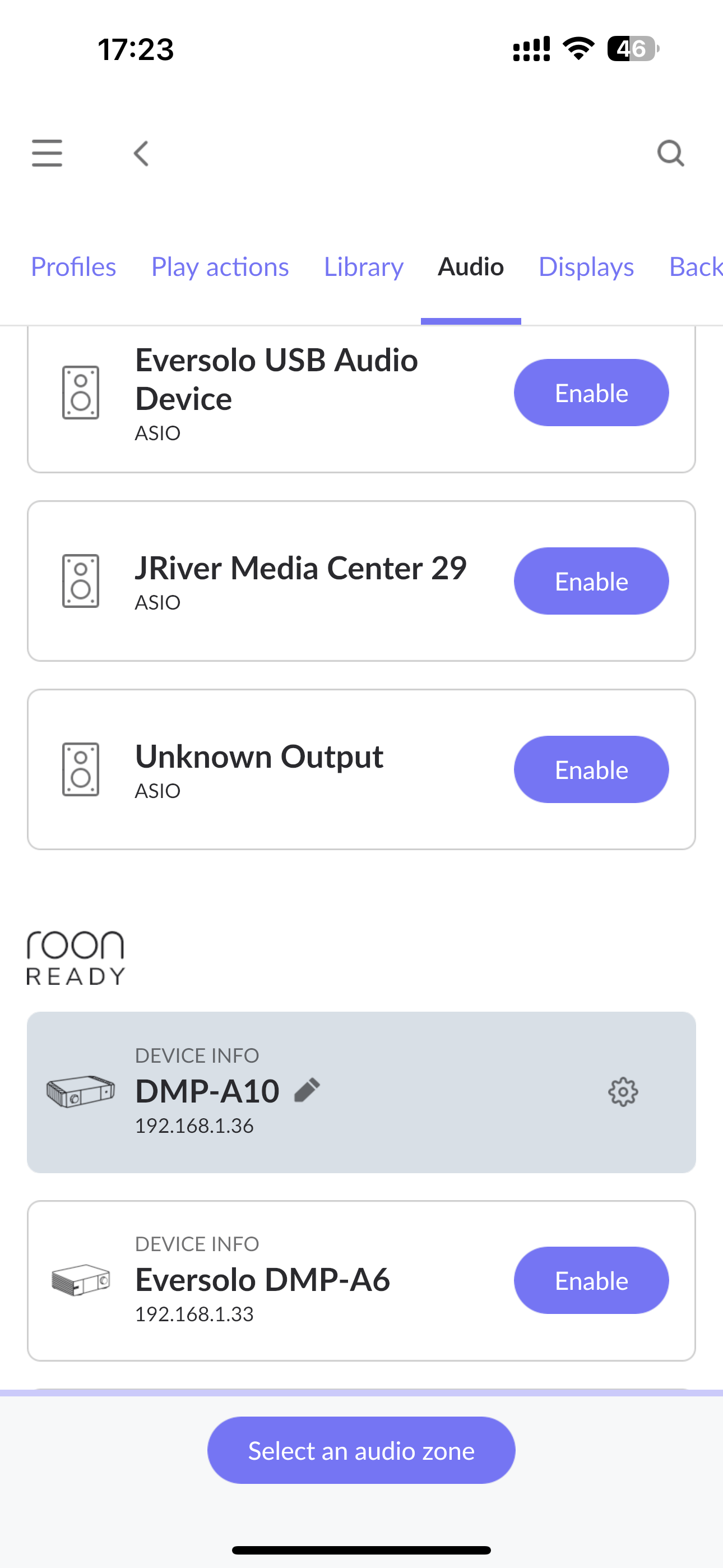

Open the ROON app and go to "Settings" → "Audio".
Scroll down to the "Roon Ready" section and toggle on the Eversolo streamer.

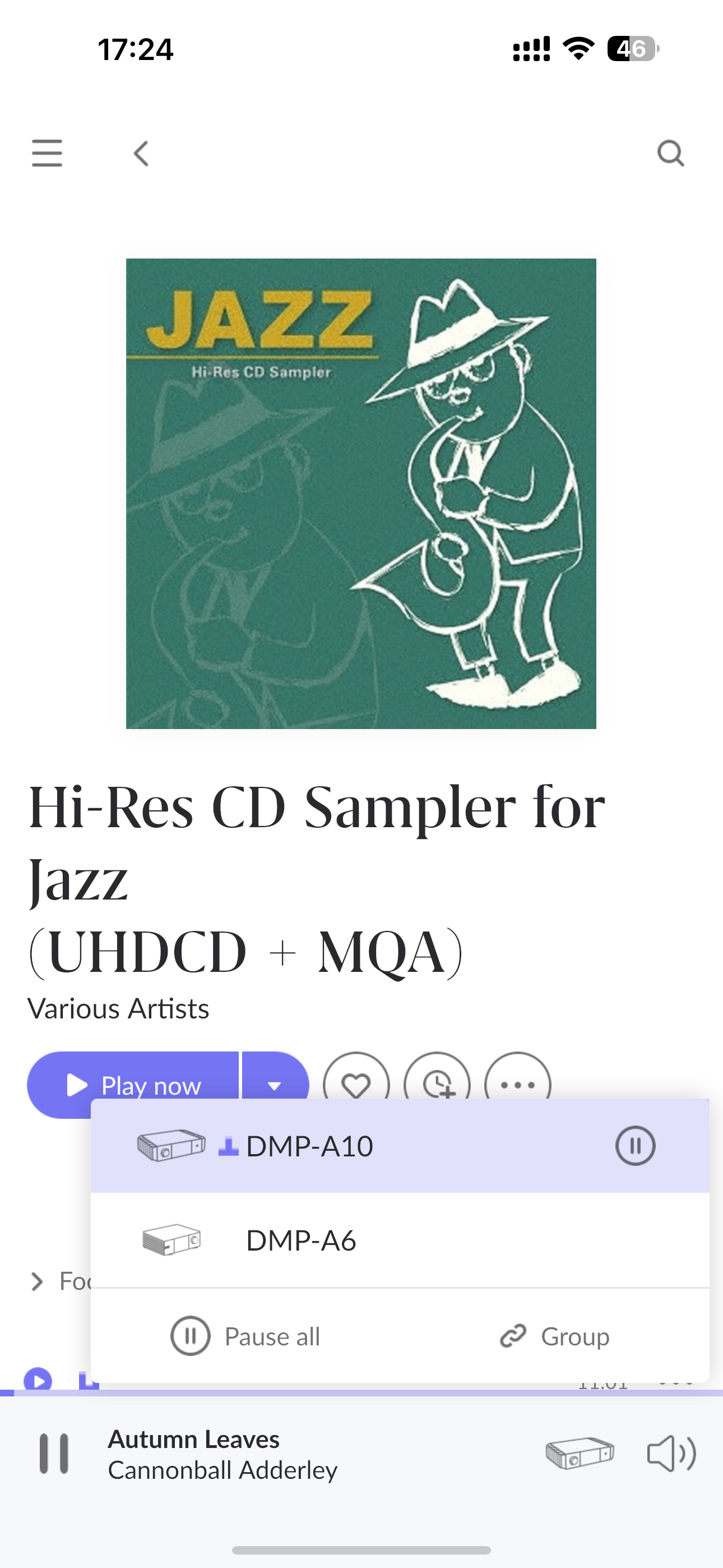

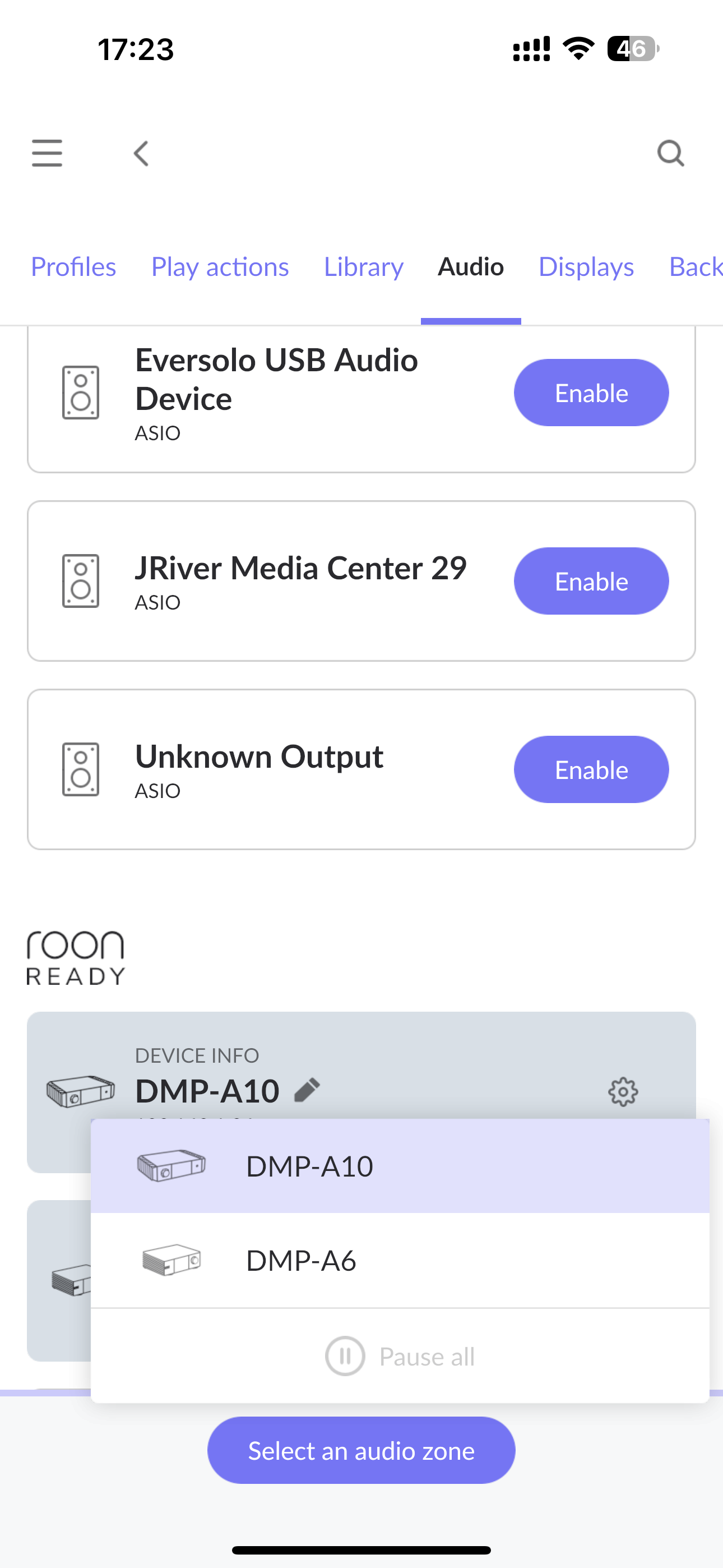

Tap the "Select an audio zone" icon on the bottom toolbar.
Choose Eversolo streamer as the active playback zone.
Play any track through ROON. The audio signal will automatically route to the Eversolo streamer.

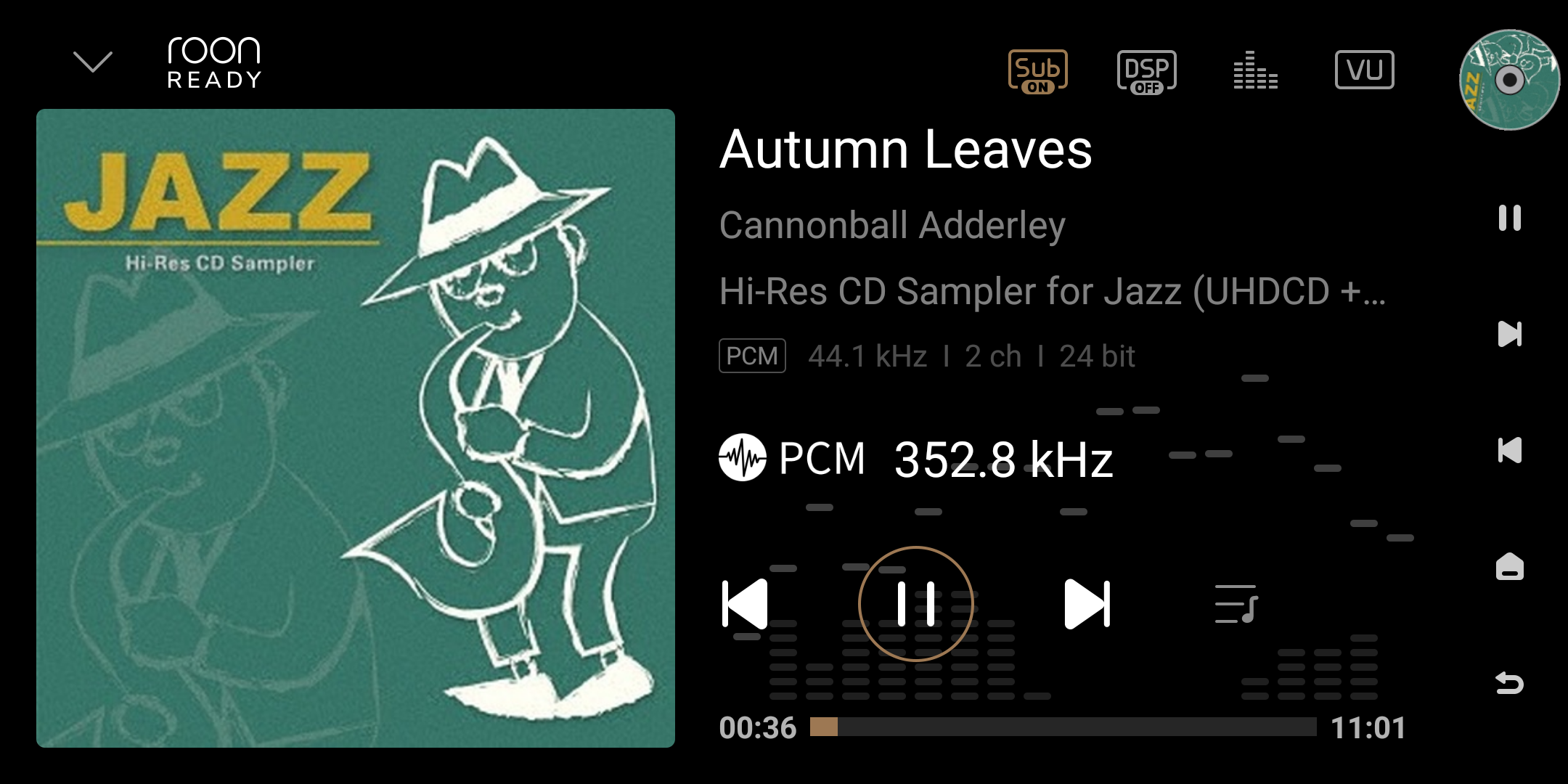

The playback information interface will display real-time metadata.
4. DLNA

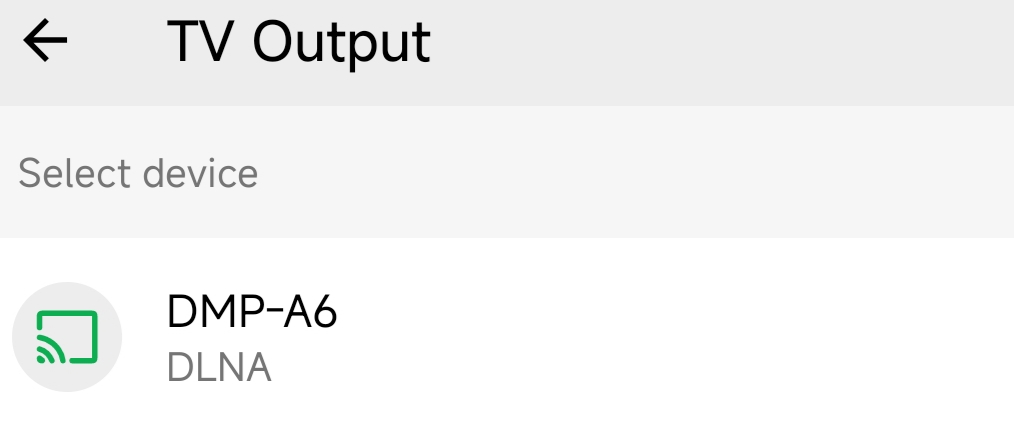

On your Android device, open a supported music app and start playing a track. Select to cast to device, then choose Eversolo streamer. The audio stream will transition from your mobile device to the Eversolo system.

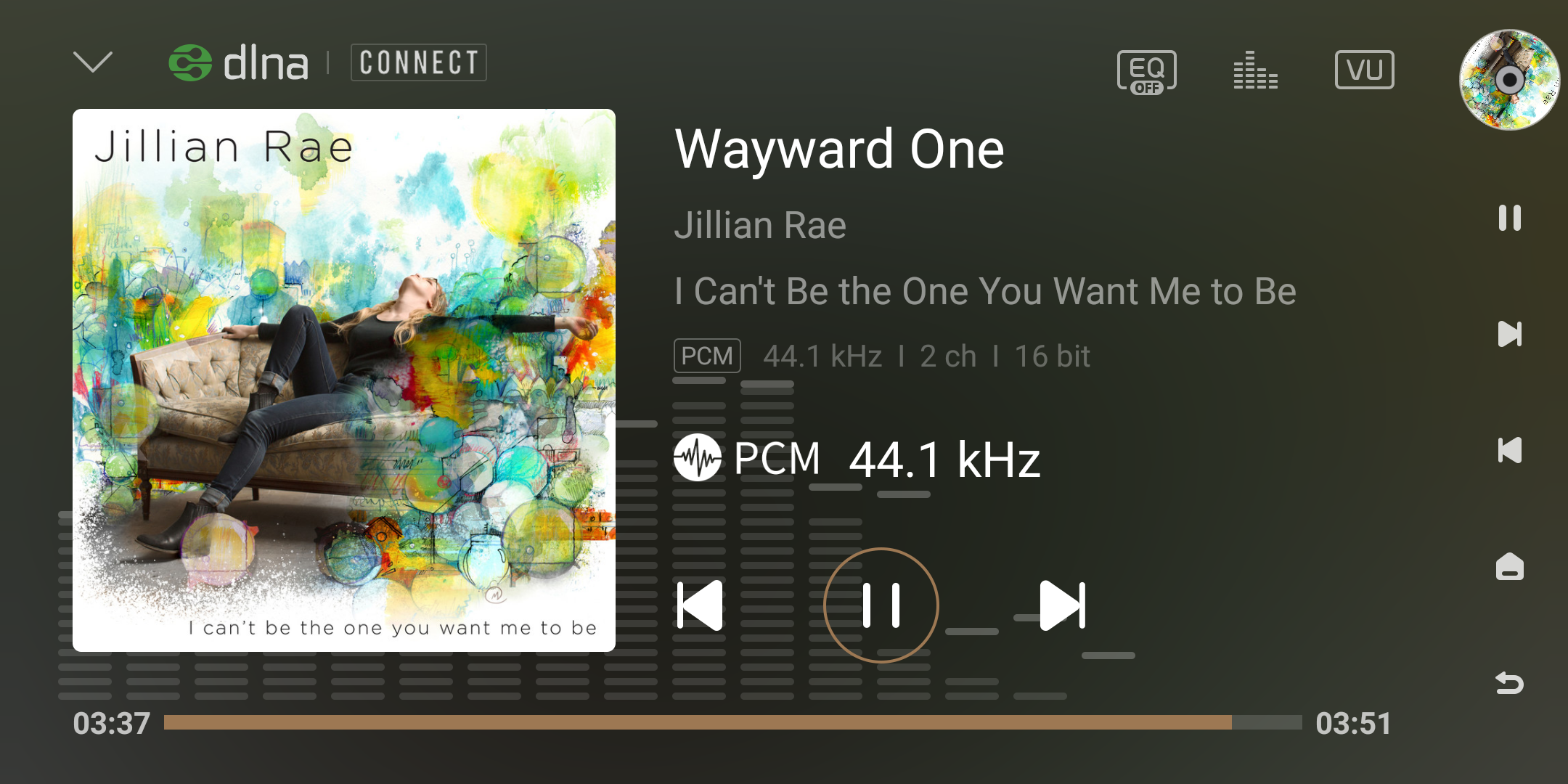

The playback information interface will display real-time metadata.
5. Squeeze Connect

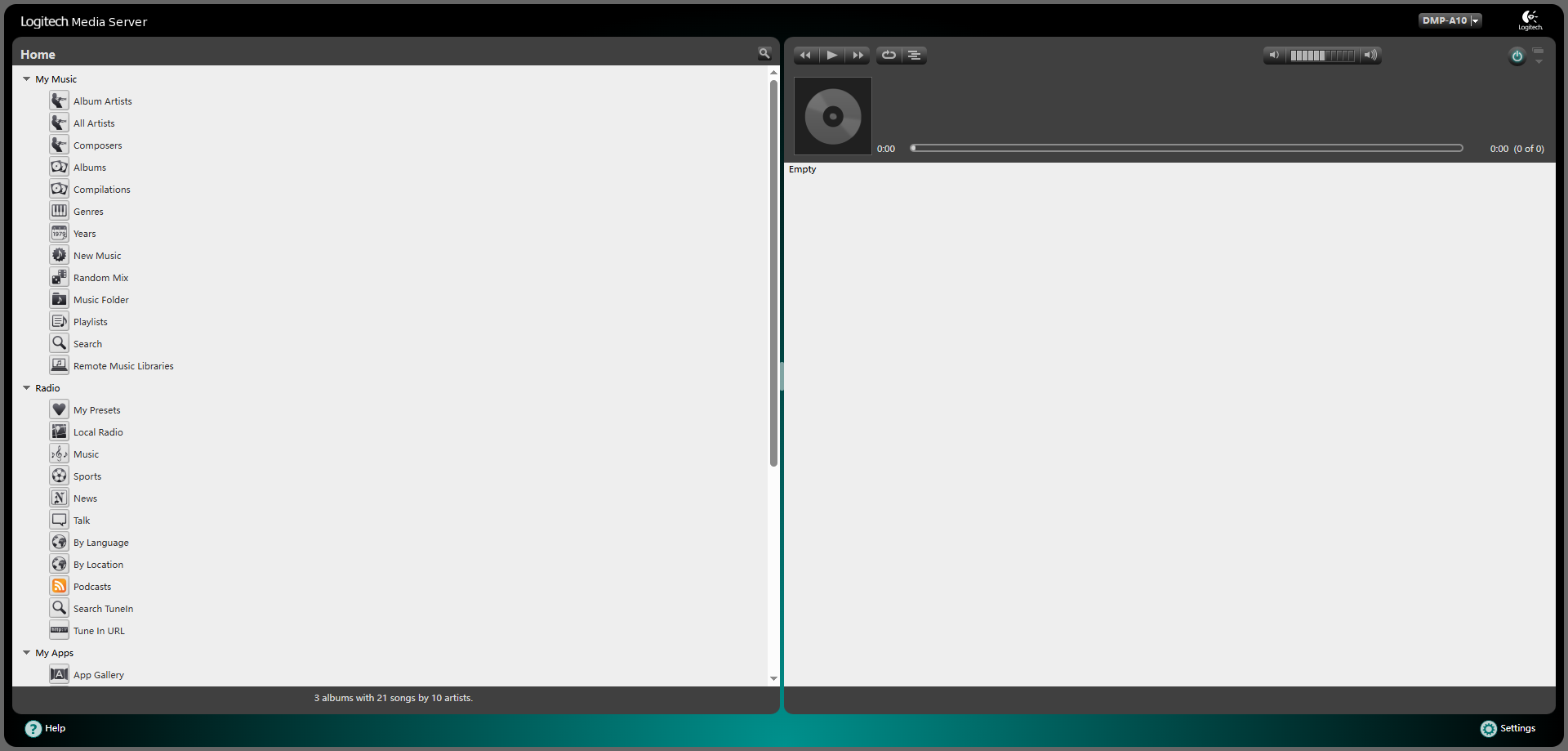

On a PC, log in to the Logitech Media Server (LMS) web interface. From the device dropdown menu at the top-right corner, select Eversolo Streamer.

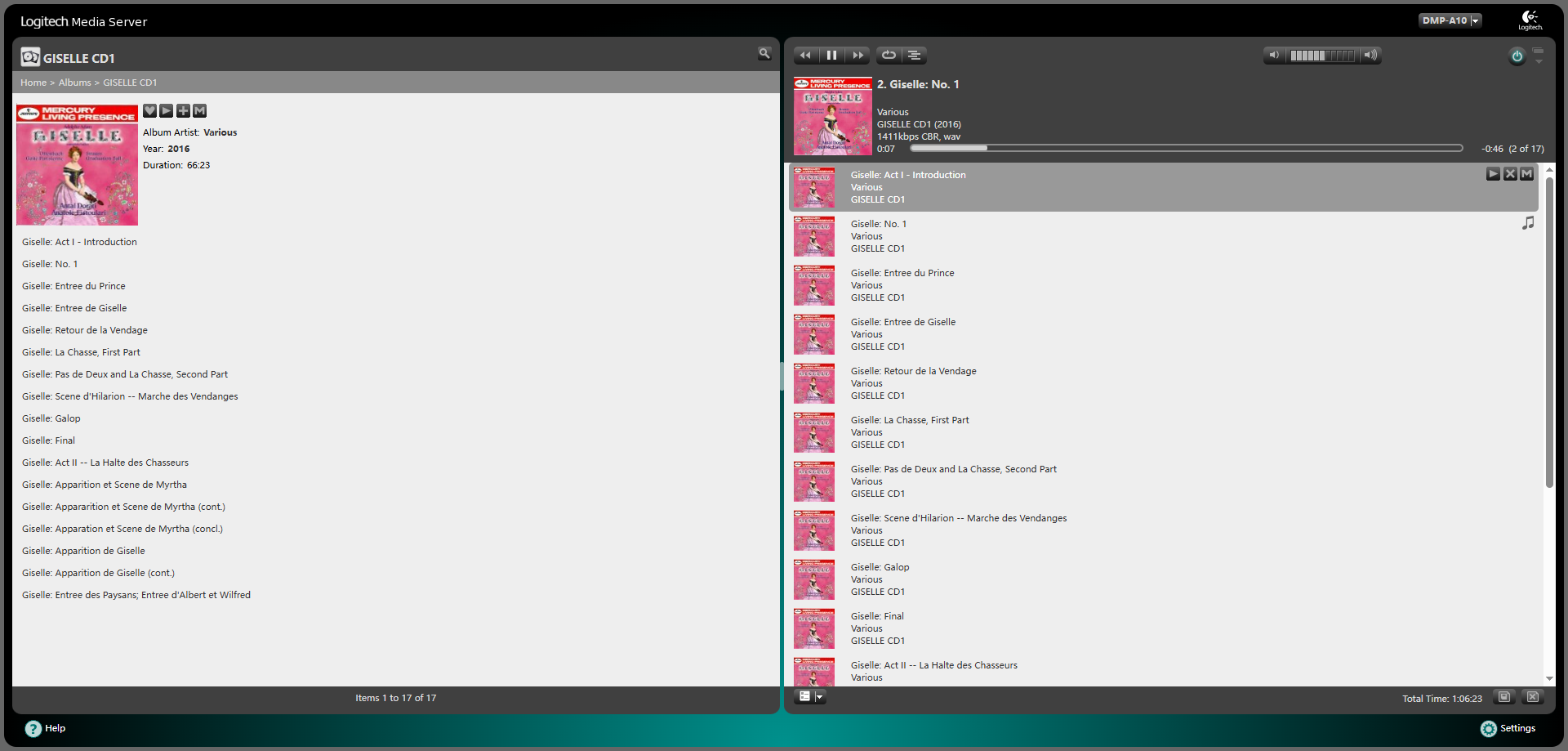

Play any audio file through the LMS web interface. The stream will transmit to the Eversolo streamer.

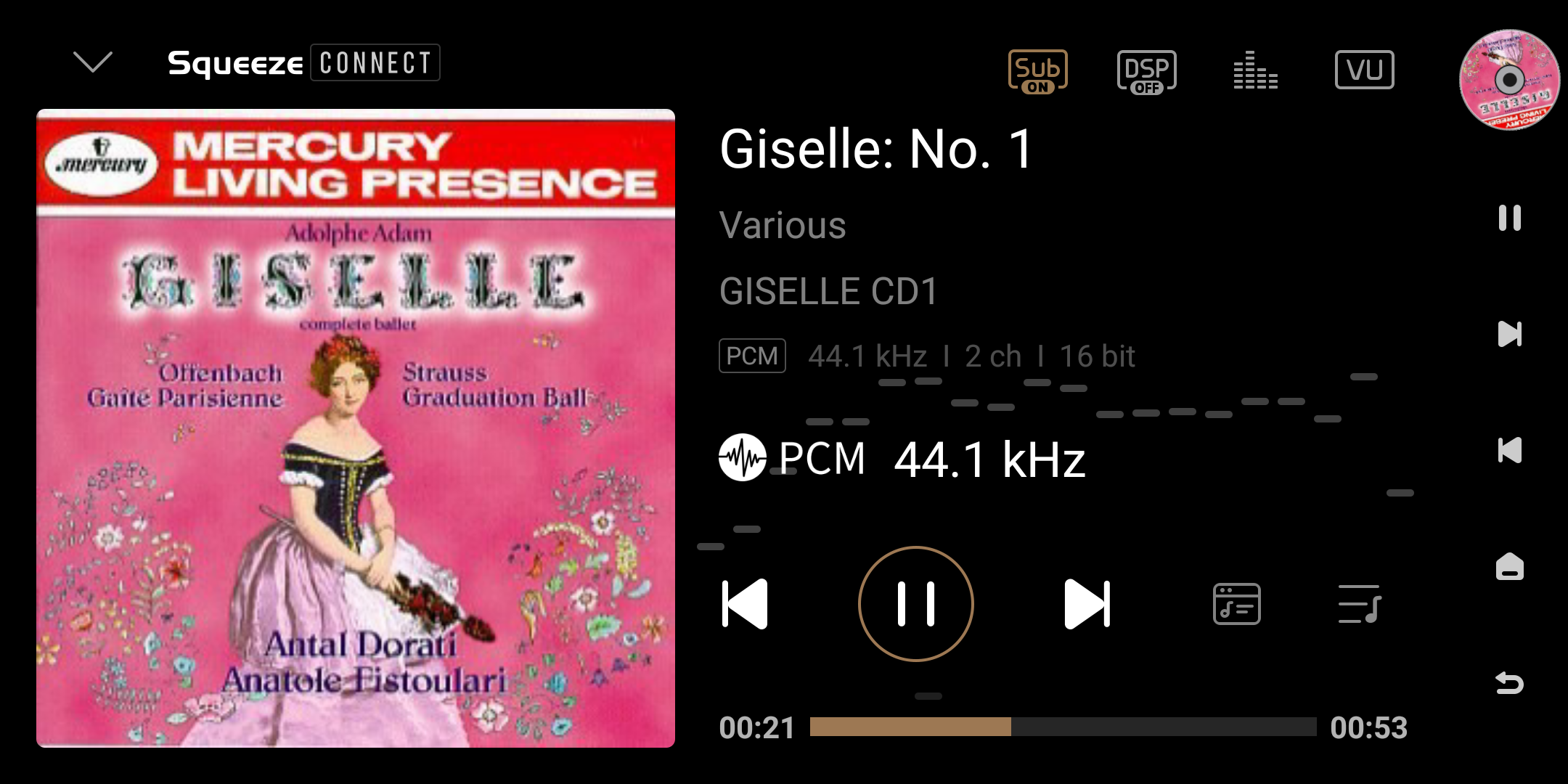

The playback information interface will display real-time metadata.
